Detalii produs
Descriere
Descriere gama scultura

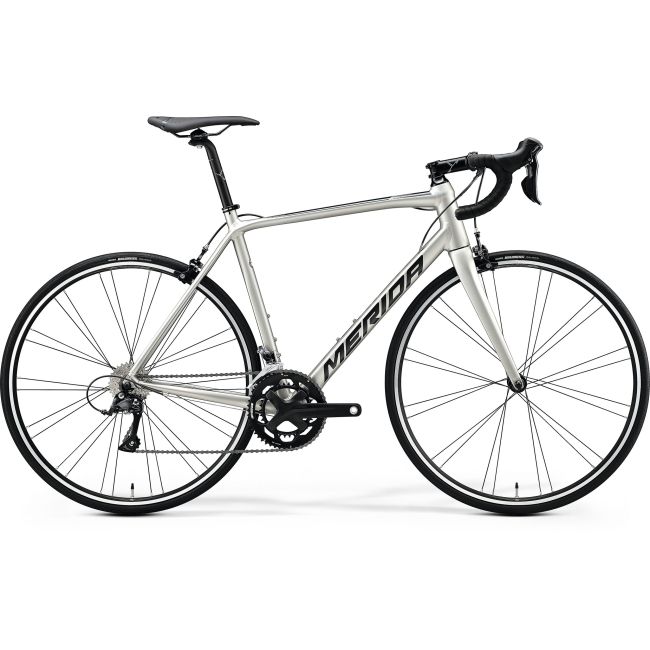

SCULTURA LITE FRAME
Lightweight 6066 triple butted aluminium frame with tapered head tube for precise steering and Press-Fit 86 bottom bracket for effective power transfer. Featuring internal cable routing and aero profiled tubing.
BOLT THROUGH AXLES
The 12 mm bolt through axles for greater wheel stiffness and precise disc alignment when replacing wheels. The custom axle lever is removable and has a 4 mm Allen key included, so, for example, stem and seat post clamps can be tightened and loosened.
PRECISE STEERING
All models feature a full carbon fork with a tapered steerer to give precise, confidence-inspiring steering. All SCULTURA Alloy and CF2 carbon models feature a ‘regular’ 1 1/8" to 1 1/2" taper. The high-end SCULTURA CF4 frame has a slimmed down front profile and uses a 1 1/8" to 1 1/4" taper, the new REACTO frames a 1 1/2" to 1 1/4"taper.
AERO PROFILED TUBING
Our wind tunnel learnings from the REACTO design project have been used to create a smaller aerodynamically optimised ‘NACA Fastback’ tube profile. The more extreme truncation of the teardrop shaped tubes enables perfect airflow at the lowest possible weight.
DISC COOLING TECHNOLOGY
A forged aluminium part under the front and/or rear disc brake caliper draws heat away through CNC-milled cooling fins giving 35 % less heat build-up and faster temperature reduction for a stable braking performance.
CLASS-LEADING FRAME WEIGHTS
Our top end CF4 frame brings in 850 g (size M/L) in the caliper brake version whilst the CF4 Disc frameset tips the scales at 1000 g (size M/L). Incredible readings while offering a lifetime warranty on all our frames, even when raced.
25 MM TYRES
The SCULTURA DISC and rim version can be fitted with 25 mm wide tyres, providing maximum traction and transferring the improved braking power to the road. The 25 mm tyres also offer improved comfort.

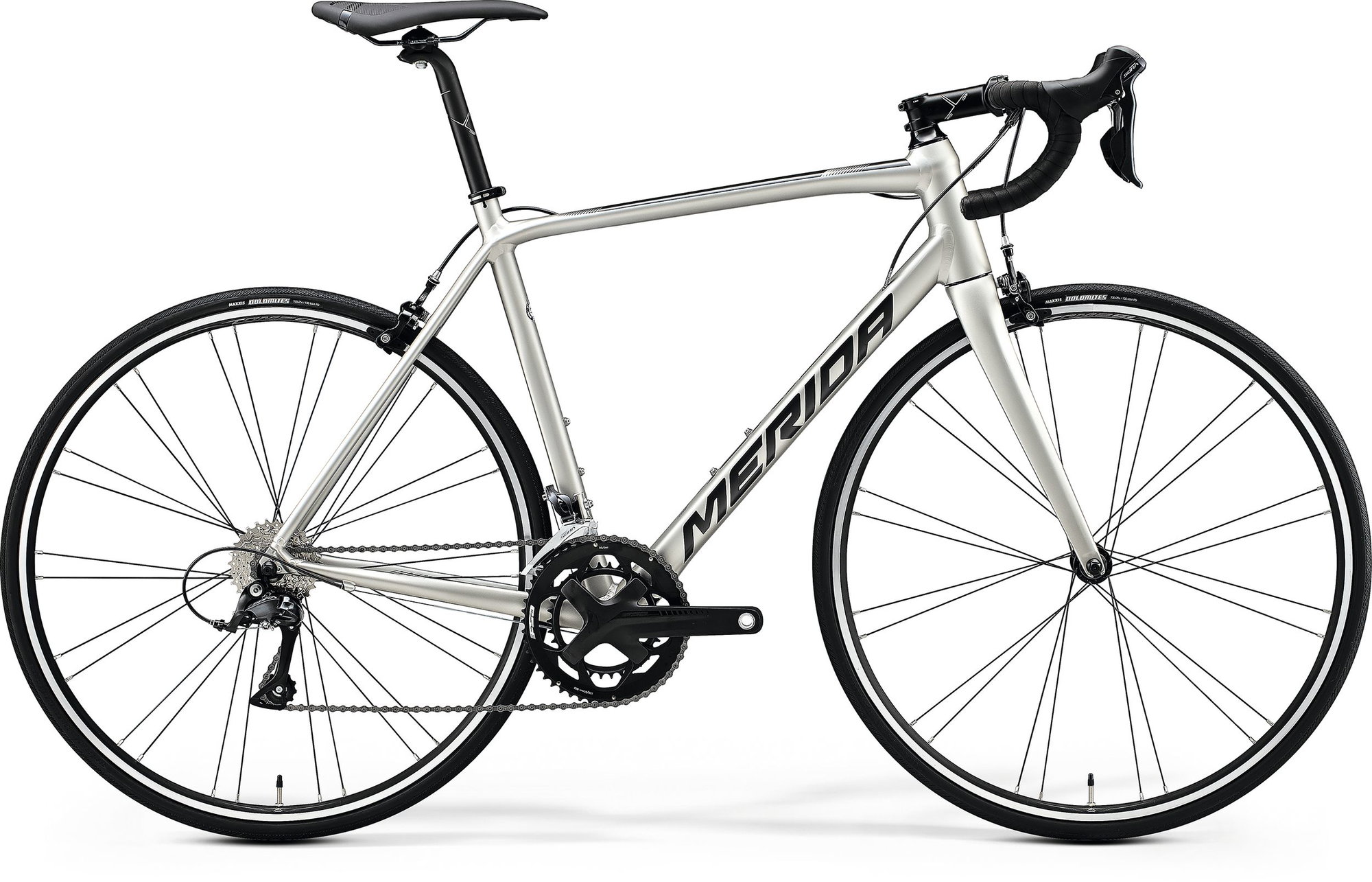

Specificatii
- Cadru: SCULTURA lite-BSA
- Mărimi: 4S-3S-XXS-XS-S-SM-ML-L-XL
- Furcă: SCULTURA CF
- Manetă de frână: Shimano Sora
- Frână față: ROAD Dual Pivot
- Frână spate: ROAD Dual Pivot
- Lanț: KMC M99
- Sistem pedalier: FSA Omega 50-34 ATC
- Butuc pedalier: FSA Mega Exo BSA
- Schimbător față: Shimano Sora
- Schimbător spate: Shimano Sora GS
- Pinioane: Sunrace CS-9S 11-28 ATC 9 GER
- Ghidon: MERIDA Expert SL
- Tijă ghidon: MERIDA Comp CC 31.8 DSH -6 ASD
- Butuc față: VP M700F 100x9 WHF 24 SPH
- Butuc spate: VP M700R 130x9 WHR 28 SPH
- Ax Față QR
- Ax Spate QR
- Jantă: MERIDA Comp SL 17 IWR 20 HRI
- Șa: MERIDA Comp SL
- Tijă șa: MERIDA Comp CC 27.2 DSP 12 SSB
- Manetă schimbător față: Shimano Sora
- Manetă schimbător spate: Shimano Sora
- Anvelopă față: Maxxis Dolomites 700x25C fold
- Anvelopă spate: Maxxis Dolomites 700x25C fold
- Masa: 9,24 Kg (700C - M/L)

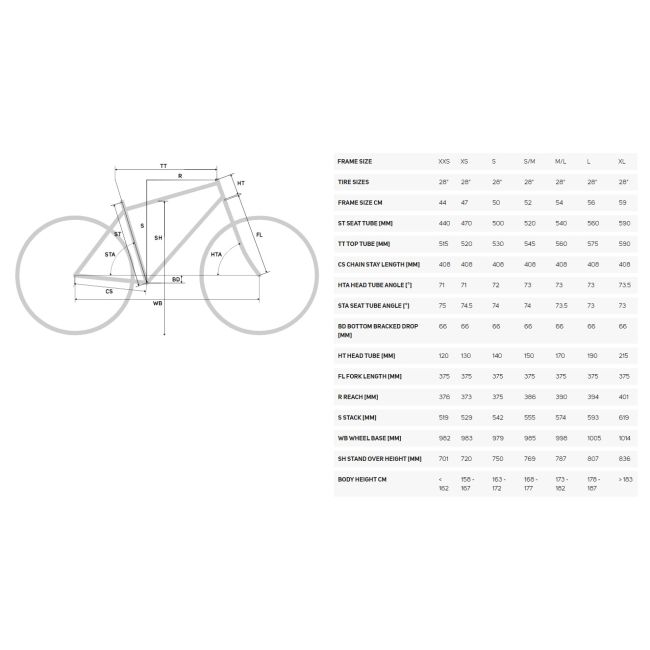

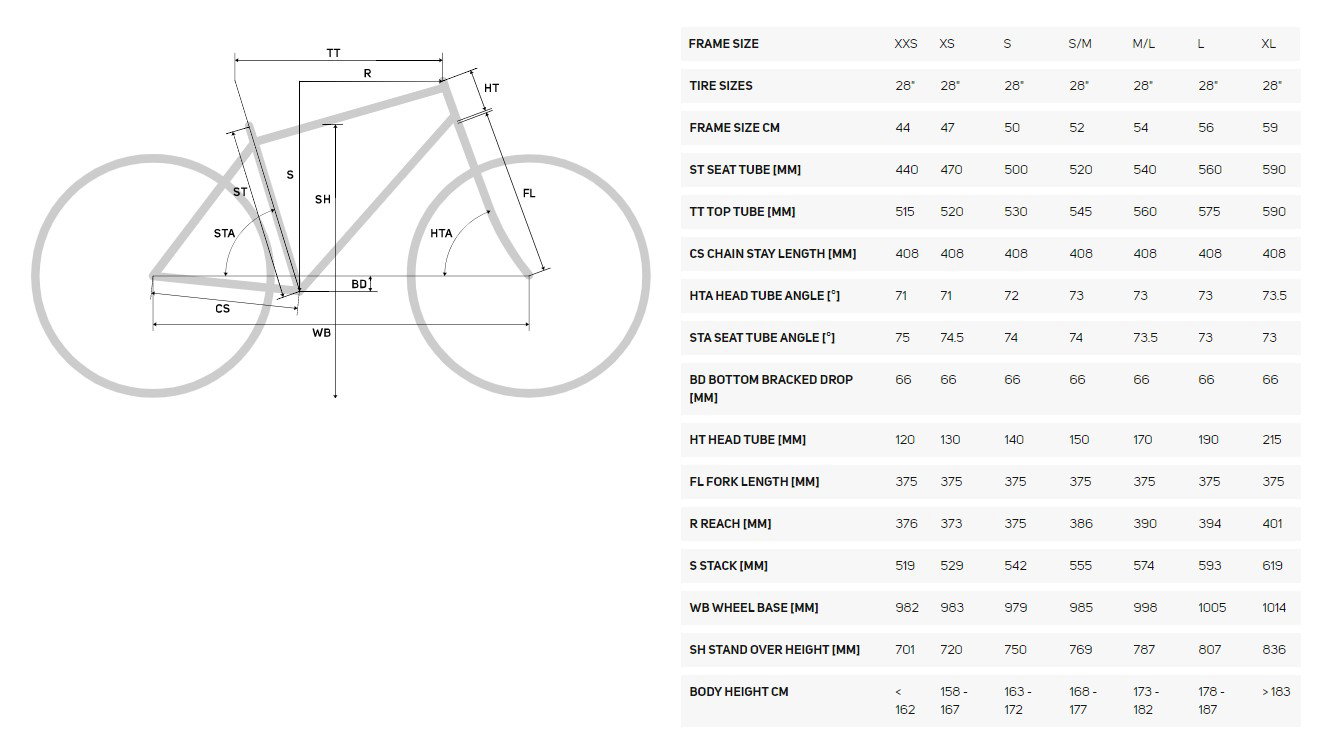

Tabel masuri
Specificații
Caracteristici
Brand:
Merida
Colecția:
- 2020
Cod de bare (EAN):
8747767800539
