SCULTURA CF2 FRAME
CF2 frame with more relaxed geometry than the CF4. Truncated ‘NACA Fastback’ profiled down tube and seat tube for aerodynamics. Tapered 1 1/8" to 1 1/2" head tube for confidence inspiring handling. Caliper version runs quick release hubs, Disc version has through axle for extra lateral stiffness and complete internal cable routing. Flat mount rear disc brake with disc cooler technology.
BOLT THROUGH AXLES
All performance DISC road bikes feature 12 mm bolt through axles for greater wheel stiffness and precise disc alignment when replacing wheels. CF4 models use the R.A.T system, super fast to open and close.
PRECISE STEERING
All models feature a full carbon fork with a tapered steerer to give precise, confidence inspiring handling. Aluminium and CF2 carbon models feature a ‘regular’ 1 1/8" to 1 1/2" taper. The high end CF4 frame has a slimmed down front profile and uses a 1 1/8" to 1 1/4" taper.
AERO PROFILED TUBING
Our wind tunnel learnings from the REACTO design project have been used to create a smaller aerodynamically optimised ‘NACA Fastback’ tube profile. The more extreme truncation of the teardrop shaped tubes enables perfect airflow at the lowest possible weight.
DISC COOLING TECHNOLOGY
A forged aluminium part under the front and rear disc brake caliper draws heat away through CNC-milled cooling fins, giving 35% less heat build up and faster temperature reduction for a stable braking performance.
CLASS-LEADING FRAME WEIGHTS
Our top end CF4 frame brings in 850 g (size M/L) in the caliper brake version whilst the CF4 Disc frameset tips the scales at 1000 g (size M/L). Incredible readings while offering a lifetime warranty on all our frames, even when raced.
25 MM TYRES
The SCULTURA DISC and rim version can be fitted with 25 mm wide tyres, providing maximum traction and transferring the improved braking power to the road. The 25 mm tyres also offer improved comfort.
FRAME SCULTURA DISC CF2

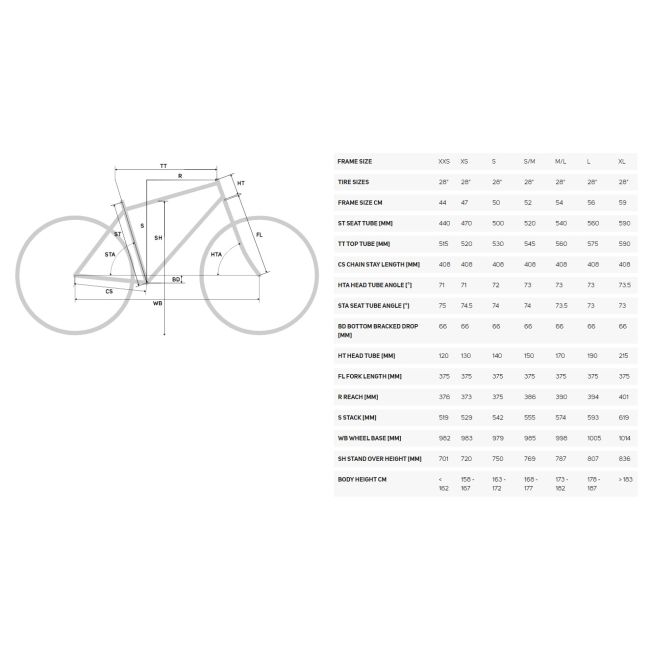

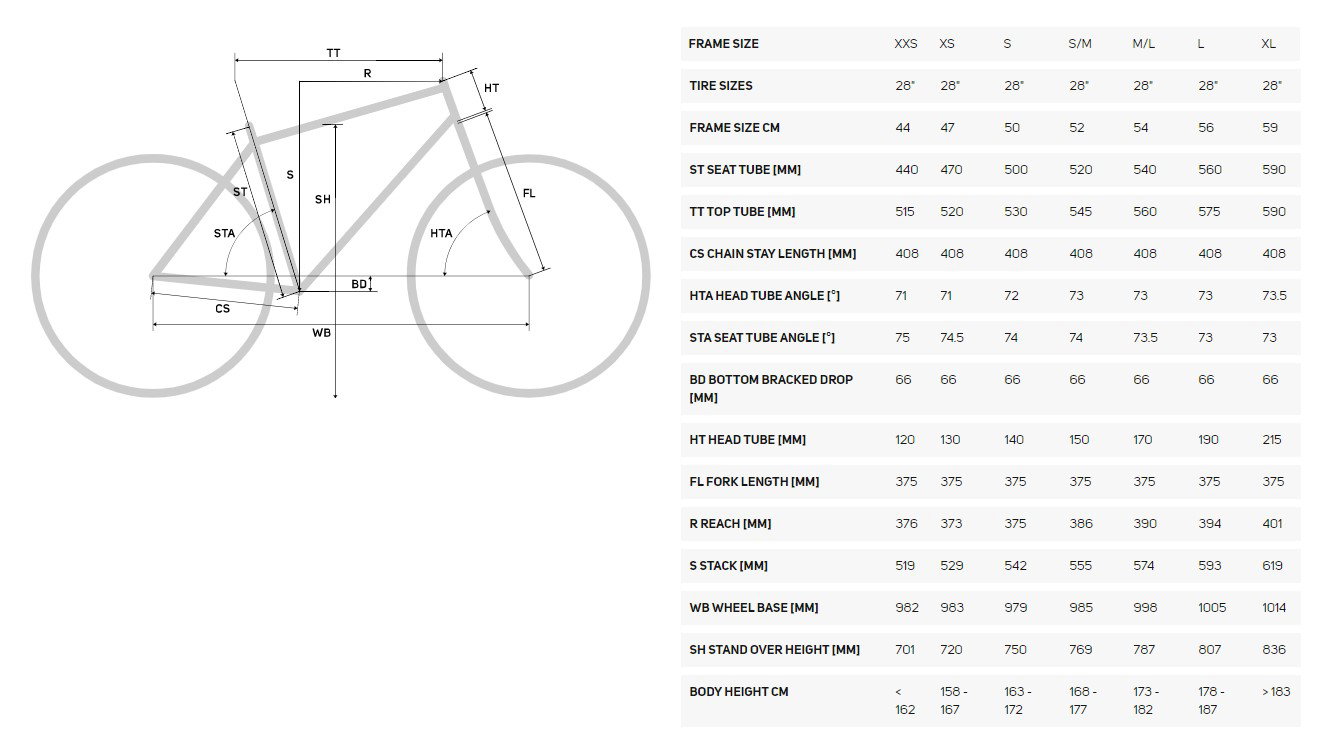

FRAME SIZE XXS, XS, S, S/M, M/L, L, XL
COLOR DARK SILVER/BLACK
FORK SCULTURA CF2 disc
BRAKE FRONT Shimano Ultegra
BRAKE REAR Shimano Ultegra
ROTOR FRONT Shimano RT800
ROTOR REAR Shimano RT800
BRAKE LEVER Shimano Ultegra
HEADSET MERIDA M2331 Neck
HANDLEBAR MERIDA EXPERT SL
HANDLEBAR STEM MERIDA EXPERT CC
GRIP MERIDA ROAD EXPERT
DERAILLEUR (F) Shimano Ultegra
DERAILLEUR (R) Shimano Ultegra
SHIFTER FRONT Shimano Ultegra disc
SHIFTER REAR Shimano Ultegra disc
SEAT POST MERIDA EXPERT CC
SEAT CLAMP MERIDA Expert
SADDLE Prologo Nago Evo
CHAIN KMC X11
CHAINWHEEL Shimano Ultegra
CRANK SIZE 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
FREEWHEEL Shimano CS-R7000
BOTTOM BRAKET Shimano Pressfit BBR72
WHEELSET Fulcrum Racing 700 DB
TIRE FRONT Continental Grand Sport Race
TIRE REAR Continental Grand Sport Race
AXLE REAR MERIDA EXPERT SL
WEIGHT 8.33 kg
