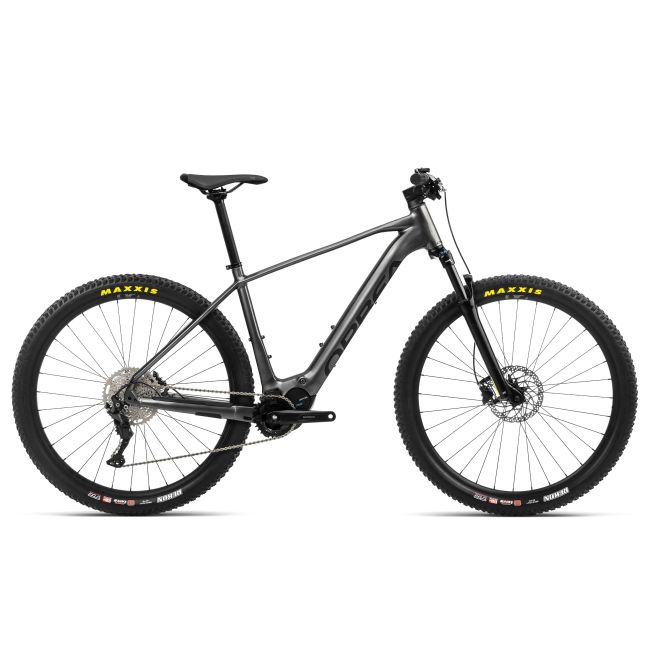

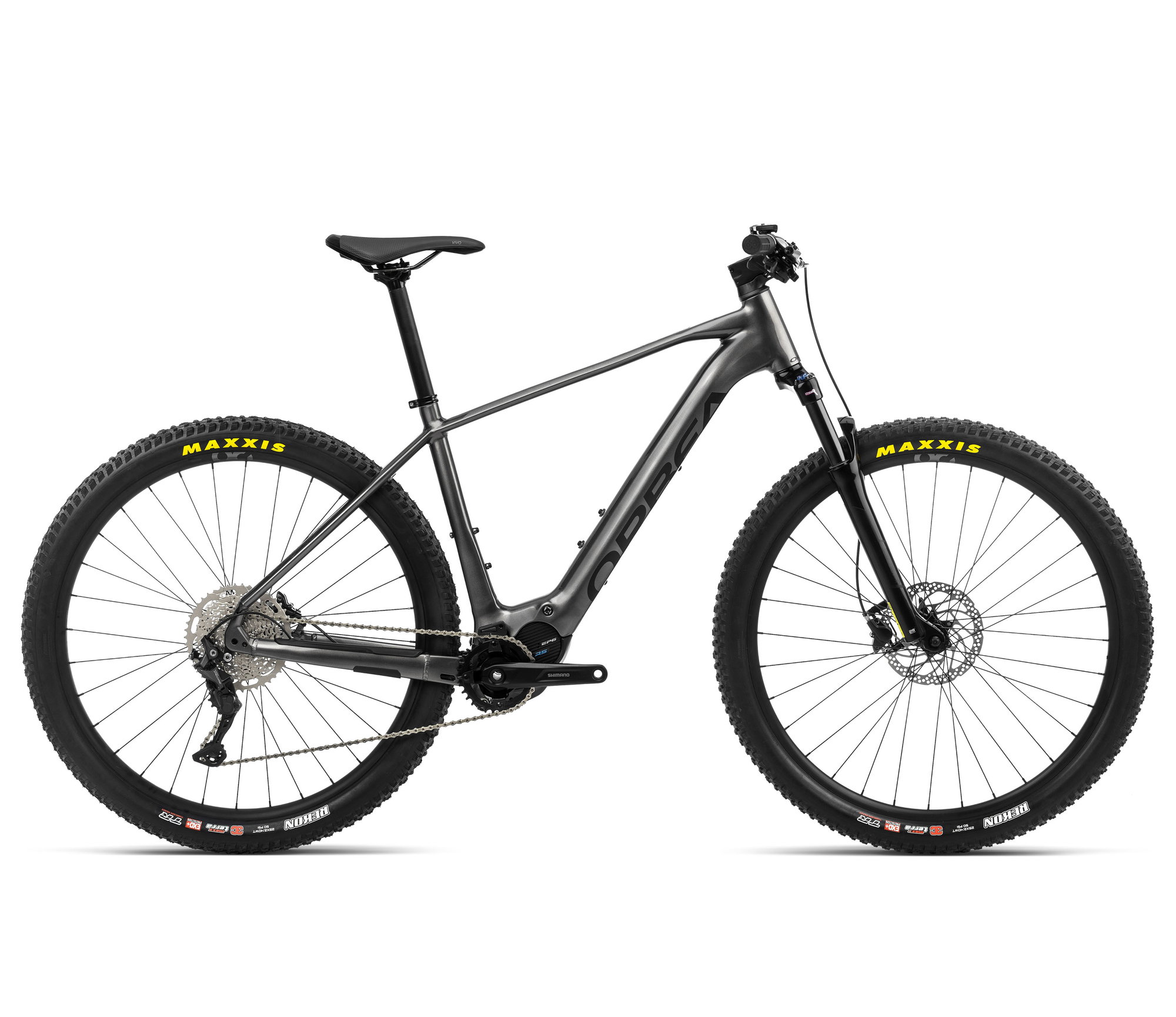

EXPAND YOUR HORIZONS

Urrun means “far” in the Basque language. Without a doubt, Urrun is an ebike to take you far and explore distant horizons, but the name holds more significance to us. Urrun is about the long journey we embarked upon with this bike and how far we have come. With new technologies and innovative integrations, it’s safe to say we are proud to have Urrun in the family. Escape, enjoy bigger adventures, go further and explore harder. There are no more excuses.

NEW FRONTIERS

Urrun is ready for life, family and adventure. Our RS Concept with Rise, this is a new riding experience that enhances the joy of biking with smooth assistance that feels as natural and alive as your own body. The lighter weight EP8 RS motor, a 120mm fork and trail ready components mean that Urrun is ready to explore those distant horizons.

• INTENDED USE XC, TRAIL, ADVENTURE
• SUSPENSION TRAVEL 120MM FRONT
• MATERIAL HIGH POLISH ALLOY
• RANGE UP TO 8 HOURS RIDING
• MOTOR SHIMANO EP8-RS

NATURAL POWER

Urrun uses the same EP8 RS motor as the Rise, developed in partnership with Shimano, to give the most natural-feeling riding experience. Lightweight, quiet, and responsive but above all efficient, Urrun feels as natural and alive as your own body.

A BETTER BATTERY

Urrun is all about long rides and big adventures. The highly optimised battery offer cutting edge energy density, allowing us to fit more riding into a smaller space, improving aesthetics and reducing weight. Urrun has enough assistance for around 3500m or up to 8 hours of riding.

INNOVATE AND INTEGRATE

Urrun brings with it many cutting edge technologies aimed at simplifying the design and removing unnecessary weight. As beautiful to look at as it is to ride, Urrun hardly even looks like an e-bike.

NEXT GENERATION ALUMINIUM FRAMES

Next generation aluminium means hydroformed frames, butted tubes and polished welds. It looks great of course, matching the aesthetics of a carbon frame, but more important are the performance benefits and fatigue resistance. We are so confident in our frames that every one comes with a lifetime warranty.

Components

FRAMESET

FRAME

Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

FORK

SR Suntour X1 Coil LO 100mm QR

HEADSET

FSA 1-1/2" Integrated Aluminium Cup

DRIVETRAIN

CHAINRING

Alloy EP8 32t

CRANK

Shimano Steps EM600

SHIFTERS

Shimano Deore M4100

CASSETTE

Shimano CS-M4100 11-46t 10-Speed

REAR DERAILLEUR

Shimano Deore M5120 SGS Shadow Plus

CHAIN

KMC e10 Turbo Silver

CHAINGUIDE

Orbea Rise chainguide

COCKPIT

HANDLEBAR

OC Mountain Control MC31, Rise20, Width 800

STEM

Alloy forged, 35mm interface, -6º, ICR

BRAKES

BRAKES

Shimano MT200 Hydraulic Disc

BRAKES CONFIGURATION

WHEELS

WHEELS

Alloy, Tubeless, 29", 29c, 32H

TYRES

Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR

ACCESSORIES

PEDALS

VP-537 Black

LIGHTS

COMPONENTS

SEATPOST

Alloy, 31.6mm, Setback 0

SADDLE

Selle Royal Vivo 145x269mm

EBIKE

MOTOR

Shimano EP600-RS

BATTERY

Orbea Internal 540Wh (Optional 250 Wh Range Extender)

RANGE EXTENDER

N/A

DUAL BATTERY

DISPLAY

Shimano EN500

CHARGER

Orbea 2.Generation eBike Smart charger 42V/2-4A
